ACT DN3-XTG4 – 2003 Dodge Neon XT/Race Sprung 4 Pad Clutch Kit

Description

ACT DN3-XTG4 – 2003 Dodge Neon XT/Race Sprung 4 Pad Clutch Kit

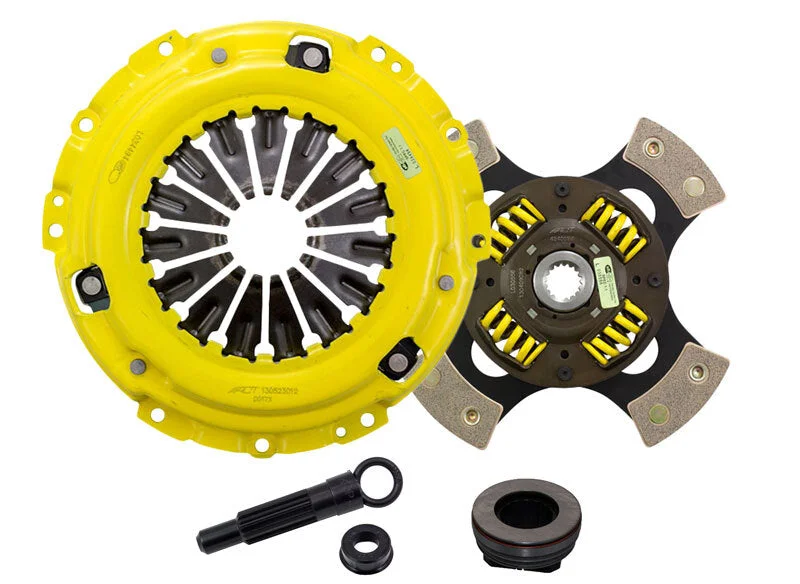

ACT Extreme Race Sprung 4 Pad Clutch Kit

XT/Race Sprung 4 Pad

DN3-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT’s 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

• “Excellence in Performance”, backed by the best one-year warranty in the industry!

Part Fitment Requirement: Conversion Kit – Replaces modular clutch. Must use ACT flywheel (not included in kit). Pressure plate bolts included (M8-1.25 x 16mm).Product Weight (lbs.): 15.2Torque Capacity (ft/lbs.): 695Torque Capacity Over OE: 120%Flywheel Included: NoPilot Bushing Included: NoPressure Plate Type: XtremeRelease Bearing Included: YesClutch Disc Diameter: 9.4Clutch Disc Diameter: 240Disc Material: CeramicInput Spline Quantity: 17Input Shaft Diameter: 0.9375Alignment Tool Included: YesDisc Type Sprung Solid: SprungPressure Plate Bolts Included: YesGrease Included: YesGrade Type: PerformanceClutch Slave Cylinder Included: NoFlywheel Bolts Included: NoPilot Bearing Included: NoClutch Master Cylinder Included: No
